J-170/55 M

Underbridge access truck mounted

J-170/55 M : Underbridge Access Truck Mounted J-170/55 M

For a three-lane bridge, gateway truck J-170/55M is a very interesting choice. Its 17.6-metre gateway and its remarkable allow it to easily execute maintenance on bridge structures.

Specifications

Platform extended length (without tower)
17 600 mm
57’7’’ ft
Retracted length
8 350 mm
27’3’’ ft
Lateral extended length (over sidewalks)
2 320 mm
7’6’’ ft

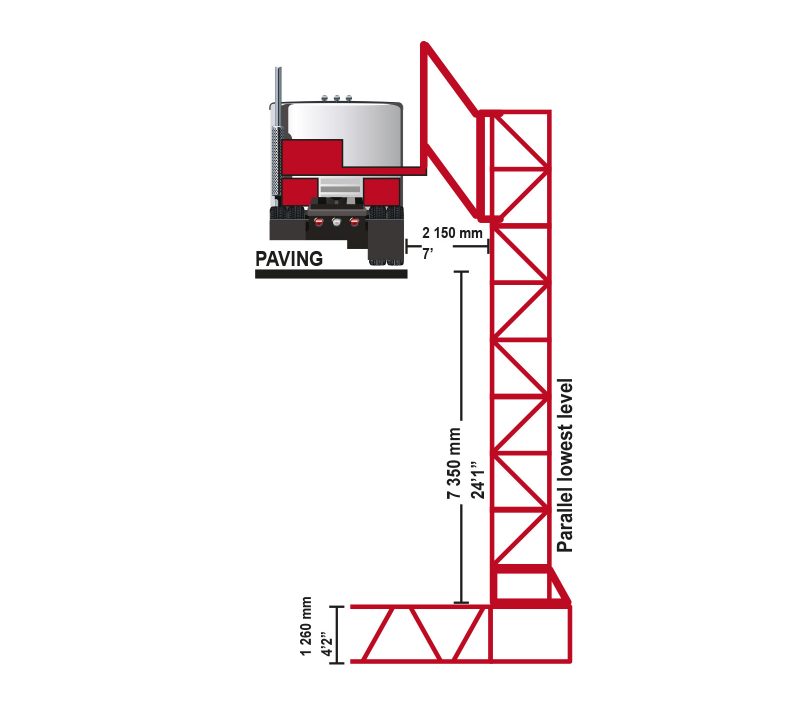

Vertical extension
6 570 mm
21’5’’ ft
Lower platform width
1 670 mm
5’4’’ ft
Total unit length
11 950 mm
39’2’’ ft
Total width in operation
2 500 mm
8’2’’ ft
Height of the tower
11 950 mm
39’2’’ ft
Platform rotation
180 degrees
Platform maximum weight capacity
1 500 lb
680 kg
Total weight of the unit
58 047 lb
26 330 kg
Erection and extension
On Right or Left Side
