Jenik
J-100/35 H

Underbridge access truck mounted

J-100/35 H : Underbridge Access Truck Mounted J-100/35 H

Sometimes there is little space between a bridge deck and the water. In this particular situation, gateway truck J-100/35H can be extremely useful. Its gateway is also an excellent tool for working on the sides of the bridge, because it deploys alongside the structure.

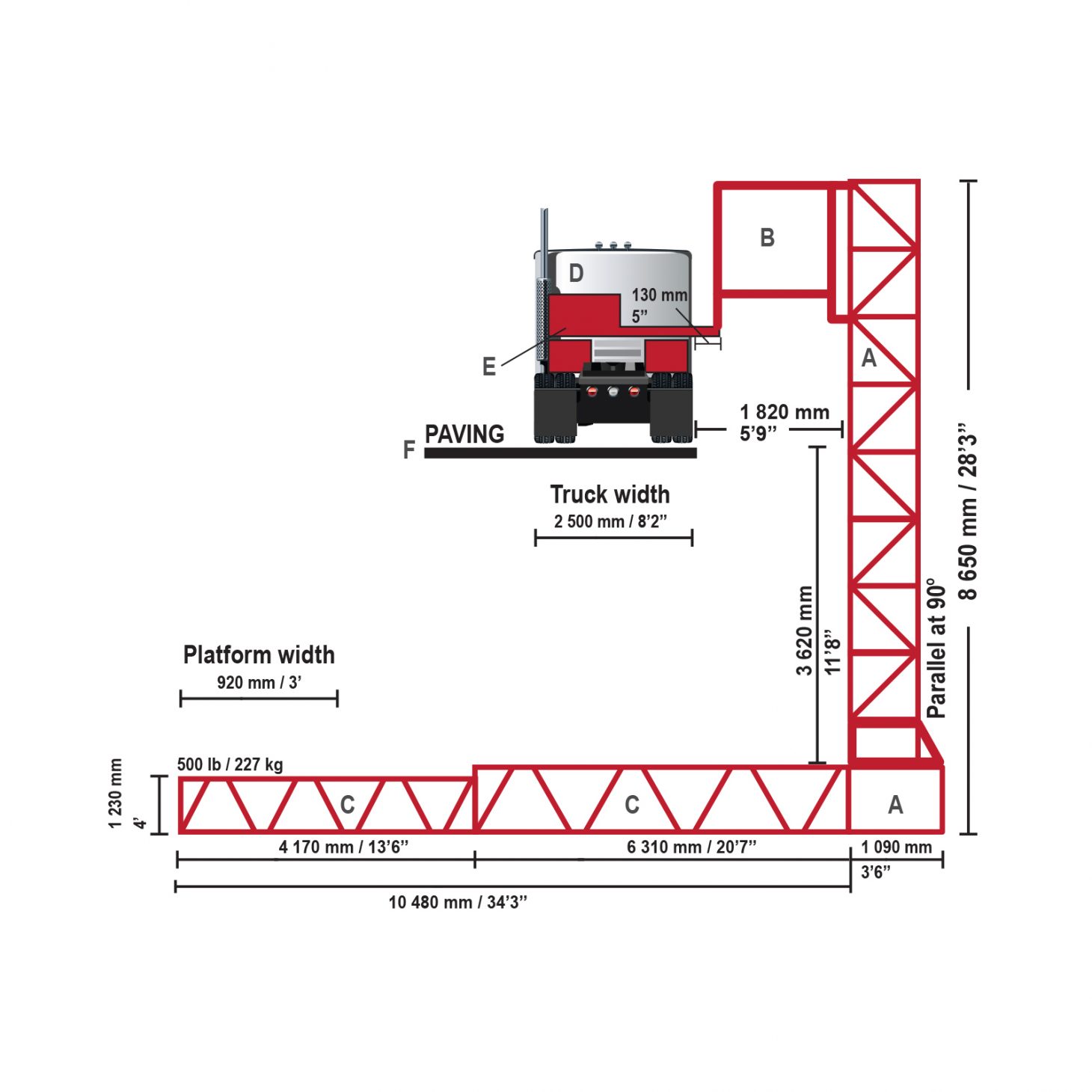

Specifications

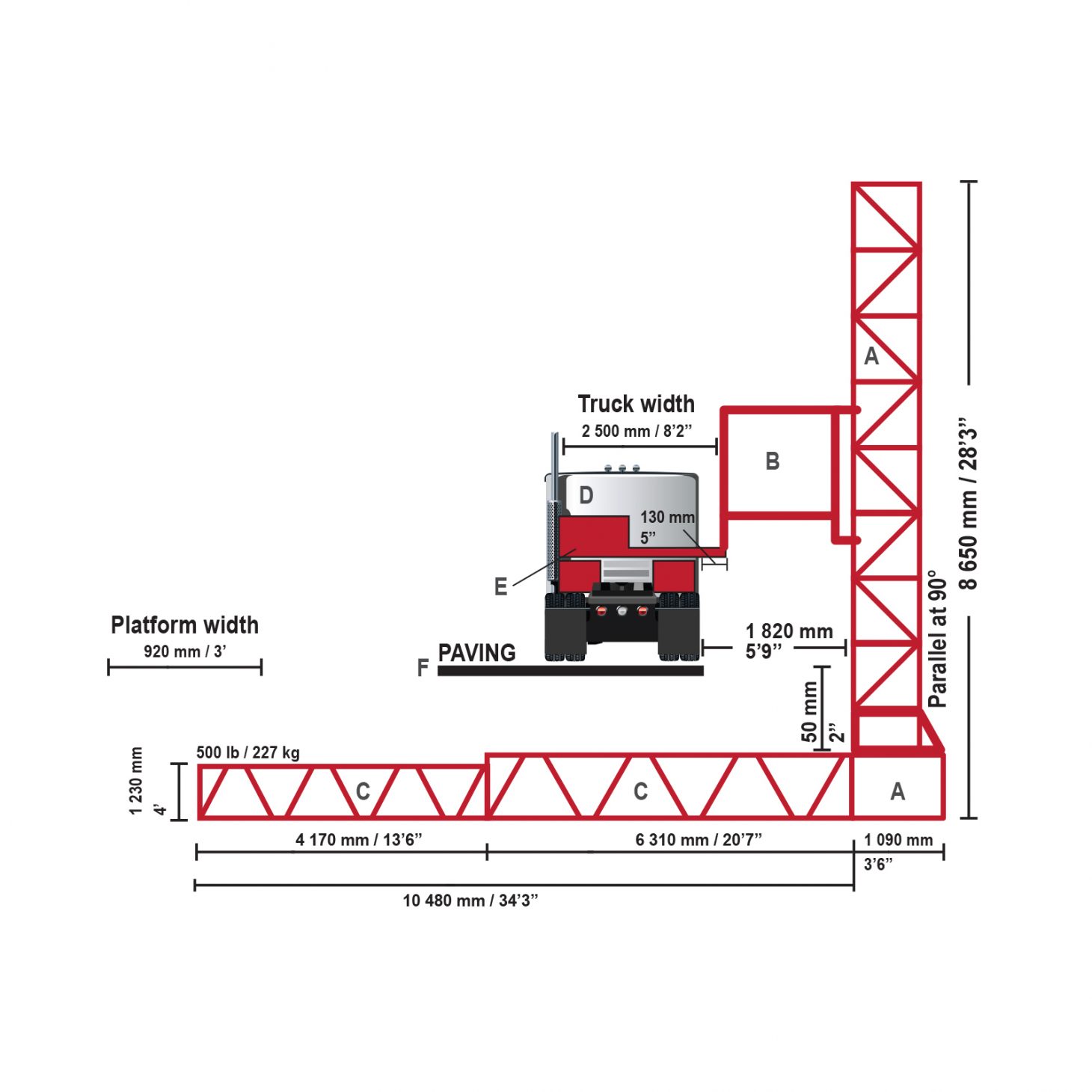

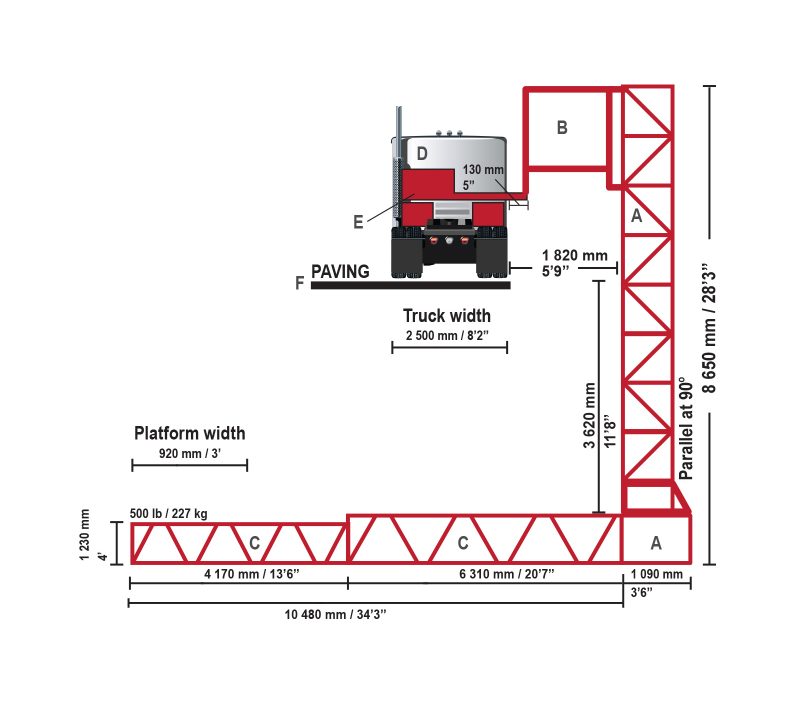

Platform extended length (without tower)
10 480 mm
34’3’’ ft
Retracted length
6 310 mm
20’7’’ ft
Lateral extended length (over sidewalks)
1 820 mm
5’9’’ ft
Vertical extension
3 620 mm
11’8’’ ft
Lower platform width
920 m
3’0’’ ft
Total unit length
10 350 mm
33’9’’ ft
Total width in operation
2 500 mm
8’2’’ ft
Height of the tower
8 650 mm
28’3’’ ft
Platform rotation
180 degrees
Platform maximum weight capacity
635 kg
1 400 lb
Total weight of the unit
17 190 kg
37 900 lb
Erection and extension
On Right
