Jenik
J-130/43 H

Under bridge access truck mounted

J-130/43 H : Under bridge Access Truck Mounted J-130/43 H

To conduct an inspection, gateway truck J-130/43H is a good option. Its lightness, combined with its 13-metre under-bridge deployment length, gives it interesting qualities when evaluating the state of a bridge structure.

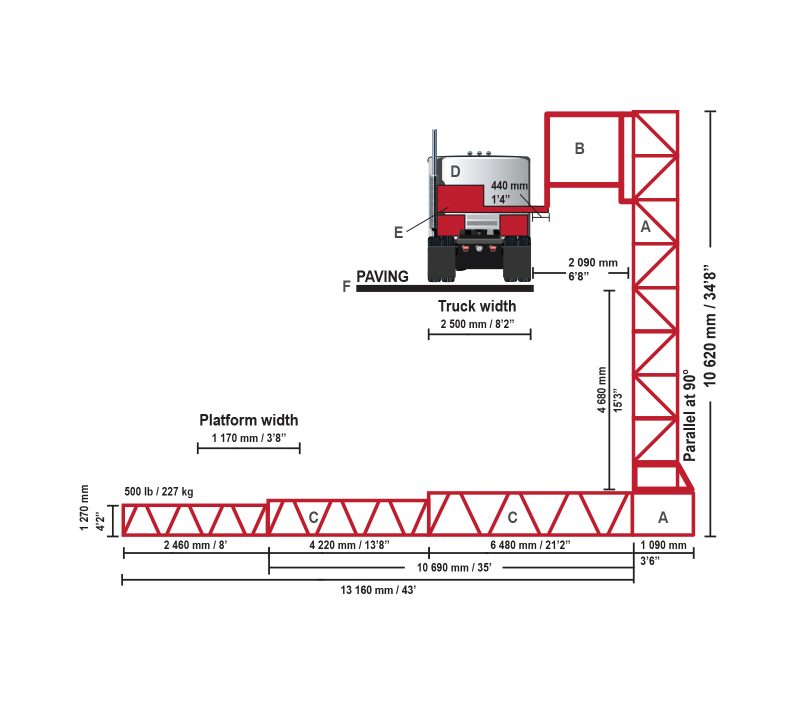

Specifications

Platform extended length (without tower)
13 160 mm
43’1’’ ft
Retracted length
6 480 mm
21’2’’ ft
Lateral extended length (over sidewalks)
2 090 mm
6’8’’ ft
Vertical extension
4 660 mm
15’2’’ ft
Lower platform width
1 170 mm
3’8’’ ft
Total unit length
10 620 mm
34’8’’ ft
Total width in operation
2 500 mm
8’2’’ ft
Height of the tower
10 620 mm
34’8’’ ft
Platform rotation
180 degrees
Platform maximum weight capacity
635 kg
1 400 lb
Total weight of the unit
20 320 kg
44 797 lb
Erection and extension
On Right or Left Side
