Jenik
J-50 UB

Aerial bucket trucks

J-50 UB : Aerial bucket Trucks J-50 UB

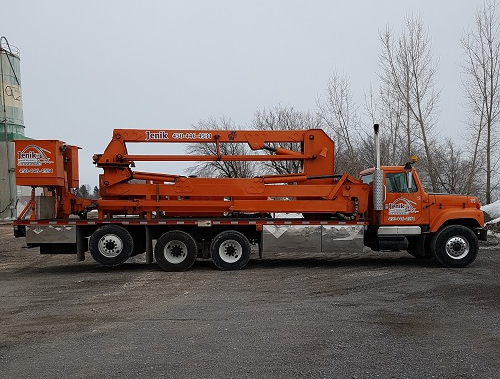

Our aerial bucket trucks J-50 UB are particularly useful for performing light work on and under metal bridge structures or complex bridge membranes. Completely deployed, the aerial platform reaches up to 15,9 meters clearance to access under the structure. The use of this type of machinery also provides access to all surfaces where no other equipment is able to reach. The aerial platform of our bucket trucks is designed to contain up to three workers in 180-degree rotating basket.

Specifications

Horizontal reach under bridge
15,8 m / 51'8'' ft
Vertical reach down
19,2 m / 62'9'' ft
Vertical reach up
11,6 m / 38'0'' ft
Movement No 11
+35 à -35 degrees
Movement No 22
+0 à -105 degrees
Movement No 33
+90 à -60 degrees
Movement No 44
+90 à -36 degrees
Space required on bridge
2,6 m / 8'5'' ft
Basket capacity
272 kg / 600 lb
Basket size
1010 x 1520 x 1070 mm / 40''x60''x42''
Total length
11,3 m / 37'0'' ft
Total size
4,0 m / 13'1'' ft
